Model Tracking Tutorial

Note

Support: Android / iOS

Tips: Model Tracking currently does not support directly running on PC, please build it to Mobile platform (Android or iOS) for getting effect experience.

Part 1. Introduction

The Model Tracking of VOID AR provides accurate recognition and robust tracking to objects in the real world.

This feature supports a wide variety of objects, from toys, to vehicles, to medical and industrial equipment. It is capable of being widely used in the field of industry, marketing, medical, education, exhibition, etc.

- Video Tutorial

Follow our video tutorial to learn the detailed steps for developing Model Tracking in Unity.

VOIDAR Model Tracking in Unity

Part 2. Reading Guidelines

This tutorial is mainly to introduce how to use VOID AR Model Tracking SDK for model tracking in the Unity environment.

We assume that readers have basic experience in app development and unity usage.

For more unity3d usage information, please visit the official website of unity3d documentation.

Part 3. Development Environment

You need to install and prepare your development environment as below before you start.

OS: Windows 7 or higher (we recommend using Windows 10)
Unity3D: Unity 2017.1 or higher

Note

We recommend using the version in the tutorial: Unity 2018.4.0f1 LTS
VOID AR SDK: Download VOID AR Model Tracking SDK
3D model Example: Download Car.zip, please unzip it after download
Paper Model Resources: You can download here, print and refer to the instructions to make a paper model.
Mobile device: Prepare 1 Android or iOS device (Android requires Snapdragon 820 or higher, and iOS requires iPhone 5s or higher).

Part 4. Implementation process

The implementation process is divided into four steps:

Step 1. Create project.

Step 2. Use the tool to generate the initial contour and initial data of the model.

Step 3. Produce application, bind contour / initialize data / model.

Step 4. Packaging to mobile devices, and you can recognize and track the preset 3D object.

Step 1. Create project

1.1 Open new Unity project

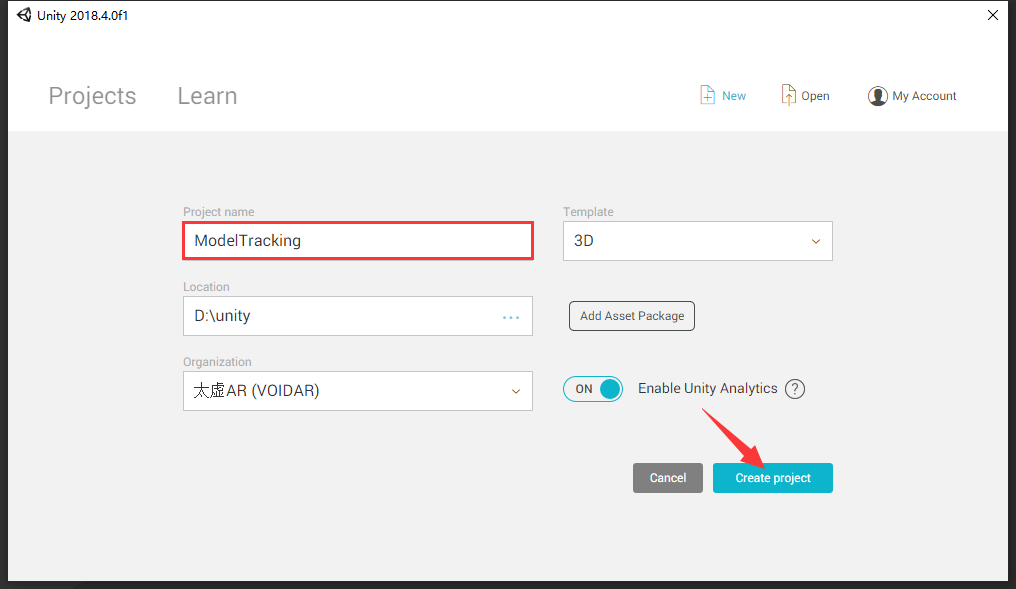

Open Unity with new project. Fill the Project name with “ModelTracking”, and select the location, and click [ Create project ].

1.2 Import SDK

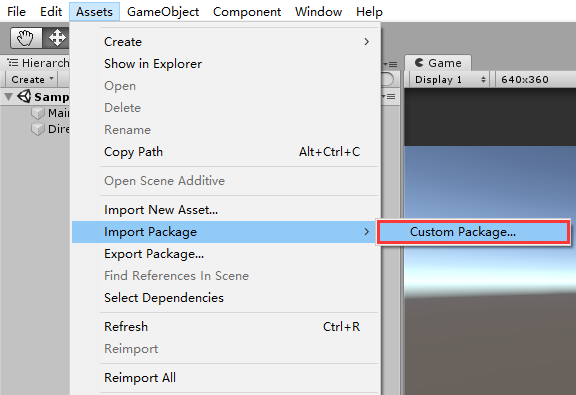

Select [ Assets ] -> [ Import Package ] -> [ Custom Package... ]，import VOID AR Model Tracking SDK.

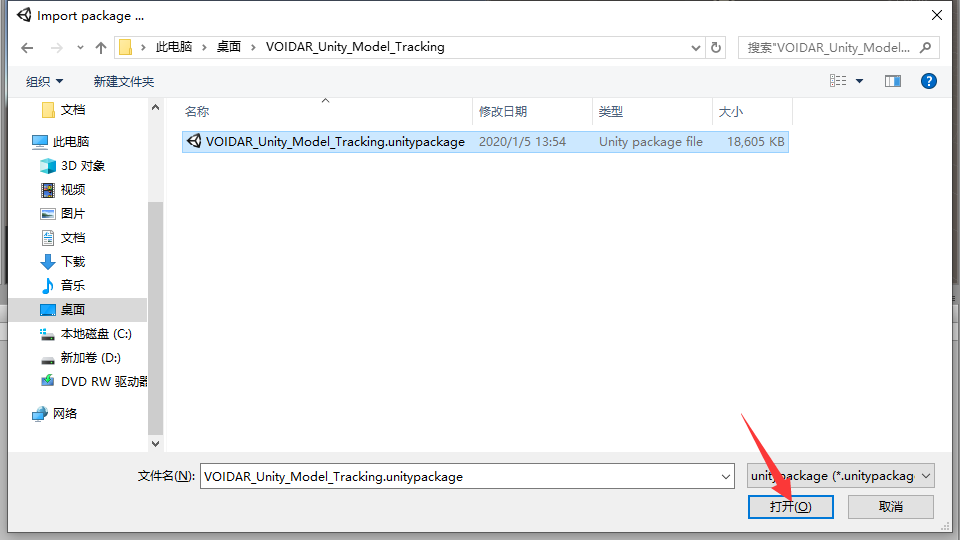

Select the downloaded SDK file (.unitypackage), and click [ Open ] button.

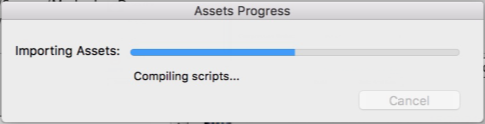

Click [ Import ] from the prompted window. It takes minutes during the import process.

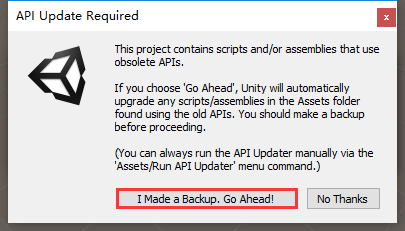

If there is a prompt window of “API Update Required” interface, please click [ I Made a Backup, Go Ahead! ].

Step 2. Generate initialization data using the tool

Note

The tool needs to be used in the Windows environment. The OSX platform is not currently supported.

2.1 Open tool

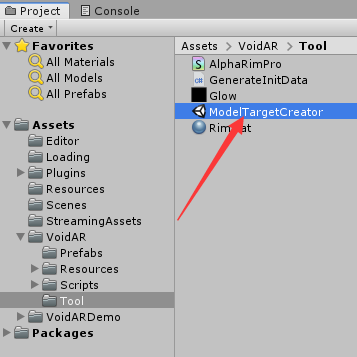

Select [ Assets ] -> [ VoidAR ] -> [ Tool ], open the ModelTargetCreator scene.

2.2 Importing 3D models

Please select a directory to import 3D models.

Important

For detailed requirements of 3D models, please refer to Requirements and Limitations of Model Objects

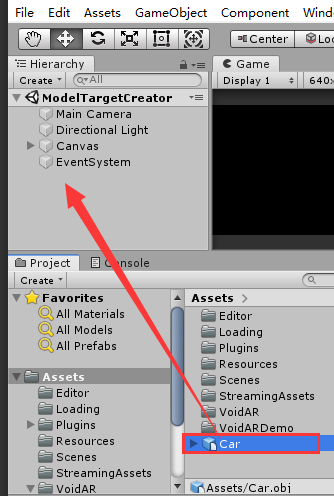

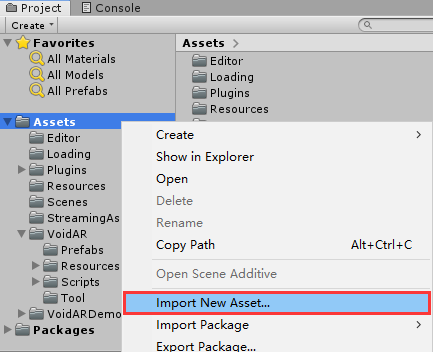

For example, right-click Assets, click [ Import New Asset... ], select Car.obj to import in the pop-up interface.

Note

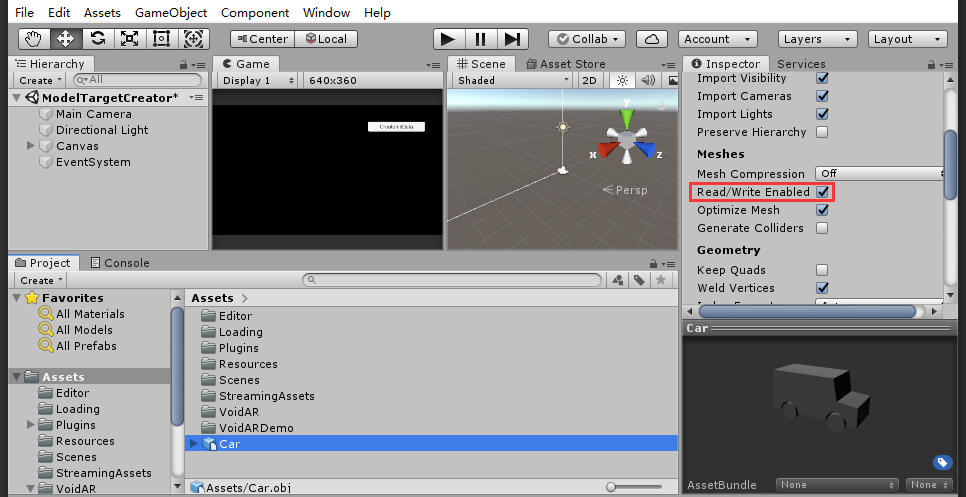

After importing, select the model, and confirms that the "Read/Write Enabled" property is selected.

2.3 Add the model to the scene

Select the model，and drag it to the scene.

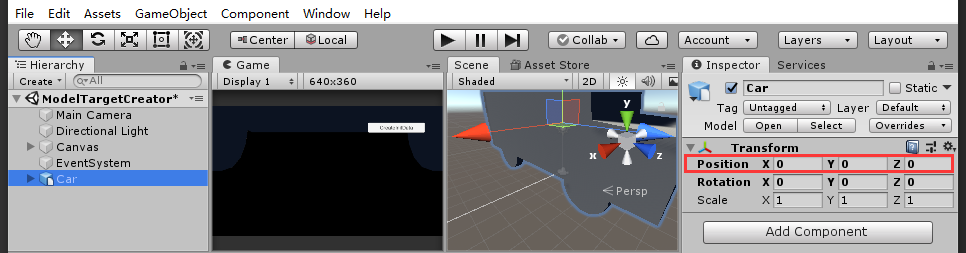

Select the “Car”, and adjust its position to (0,0,0).

2.4 Adjust the scale of the model

Important

The size of the model should be the same as or close to the tracking object.

First, you need to adjust the scale of the model.

The length of the paper-car corresponding to Car.obj is 10 cm. Create a cube as a reference (the default value of x, y, and z for the newly created Cube in Unity is 1m).

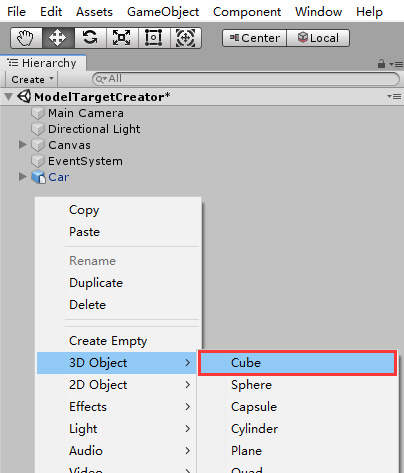

Right click the scene, select “3D Object” from pop menu, and click [ Cube ].

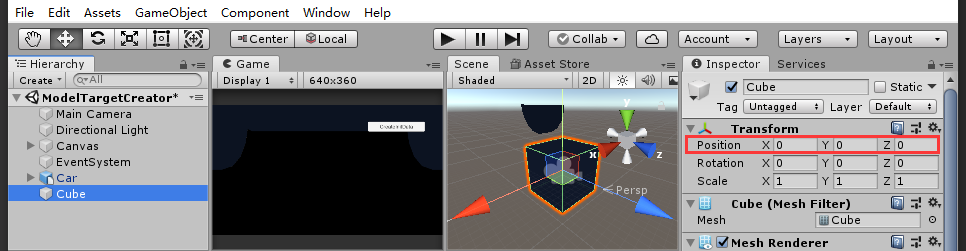

Select the “Cube”, and adjust its position to (0,0,0).

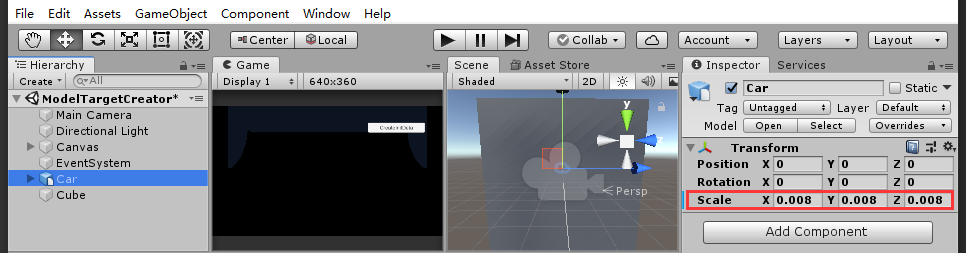

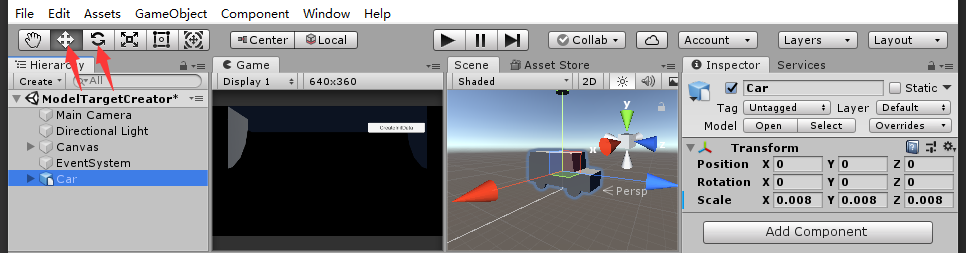

Select the"Car", and adjust its scale to 1/10 of the Cube (X, Y, Z = 0.008, 0.008, 0.008).

Note

After the adjustment, right click the "Cube ", and click"[ Delete ] "to delete the reference cube.

2.5 Adjust the position of the model

Important

Please adjust the model, do not adjust the Camera.
It is recommended that after adjustment the model should be equal to or lower than eye-level but should not be higher than it.

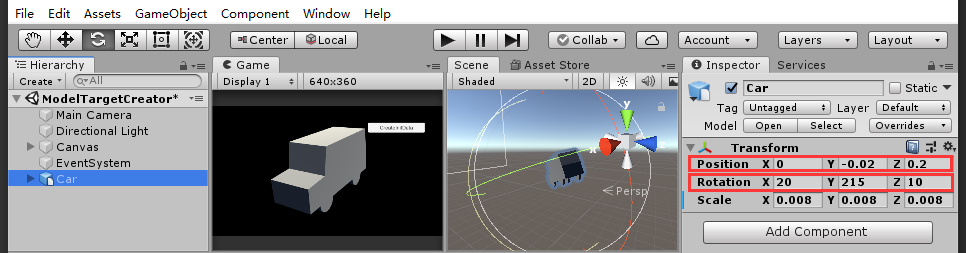

Select the Car model, adjust the "Position" and "Rotation".

When adjusting, please make sure that the model is in Camera view. During the adjustment, you can directly preview the effect through the Game window.

After adjustment, it shows as below:

2.6 Set the material of the model

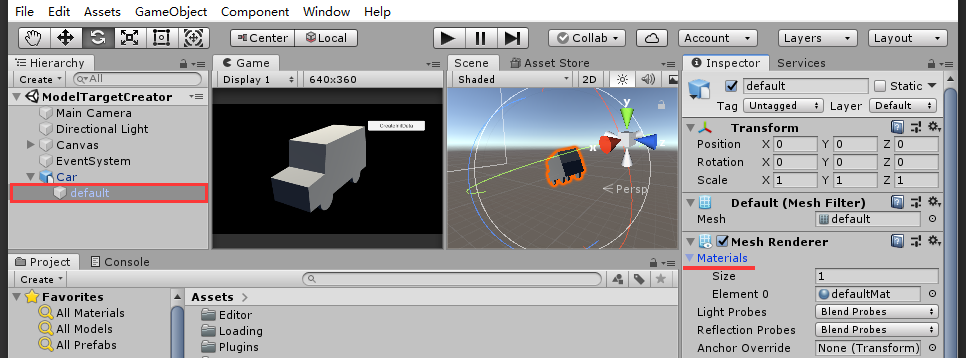

Expand the [ Car ], select the default, check the “Inspector” area, open "Material" to set the material of the model.

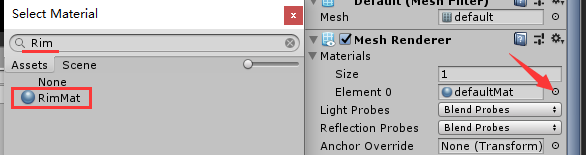

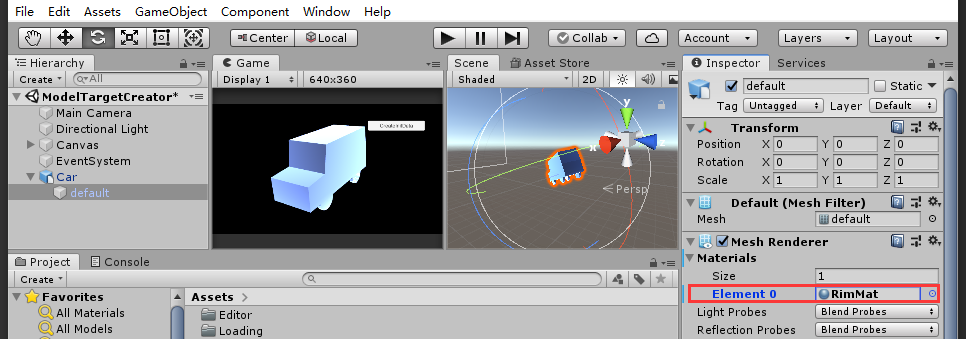

Set Element 0 and select the material as RimMat.

After setup, it shows as below:

2.7 Set output path

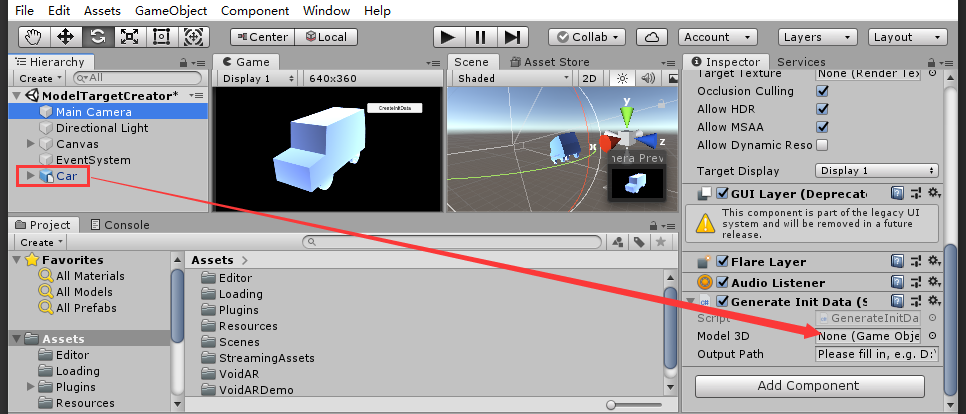

First select “Main Camera”, then hold the mouse left button on “Car” and drag it to the parameter of “Model 3D”.

Next, set the output path in "Main Camera".

Important

For the convenience of subsequent use, it is recommended to set the path in the "Assets directory in Unity project";
To avoid unusual situations, please do not choose a path with Chinese characters, and manually create the folder in the directory first.

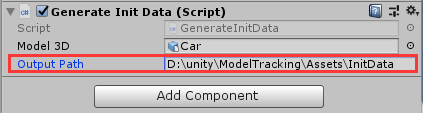

Set Output Path = "D:\unity\ModelTracking\Assets\InitData"

After setup, it shows as below:

2.8 Generate contours and data

Select [ File] -> [ Save ] to save the scene.

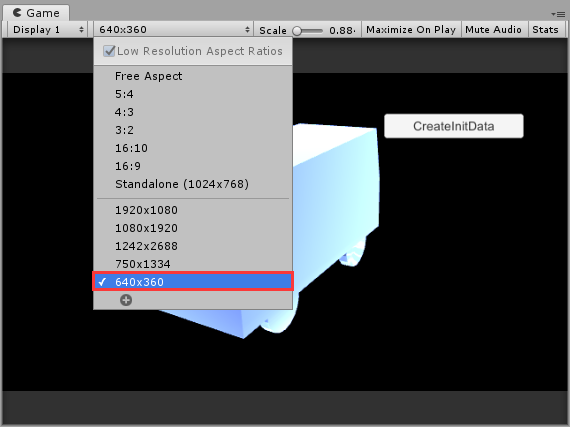

Set the resolution of the Game window to "640 × 360" (if you do not have the resolution, please add it manually first).

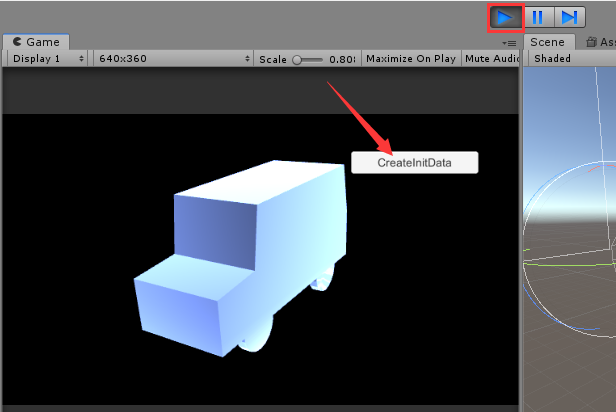

First click the [ Play ] button, and then click [ CreateInitData ] to generate the initial contour and initial data of the model.

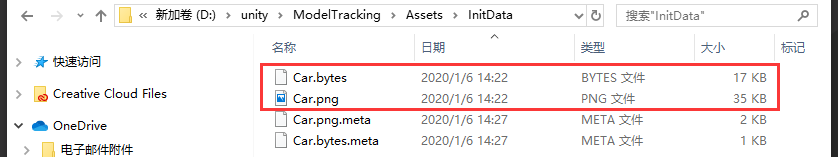

After successful creation, cancel [ play ], "the initial contour (model name.png)" and "the initial data (model name.bytes)" will be generated in the directory.

Step 3. Produce application

3.1 Create a new scene

Select [ File ] -> [ New Scene ] to create a new scene.

3.2 Delete Main Camera

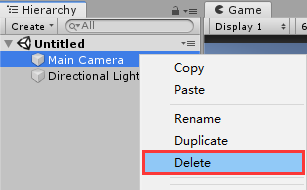

Right click the "Main Camera” from the scene, and select [ Delete ].

3.3 Drag the prefabs

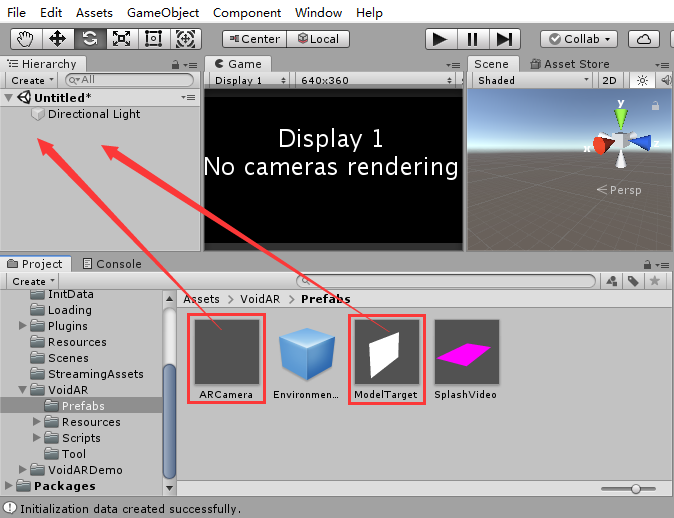

Expand the directory [ Assets ] -> [ VoidAR ] -> [ Prefabs ], and drag the prefabs “ARCamera” and “ModelTarget” to the scene.

When you finish the process, it shows as below:

3.4 Add the model to the scene

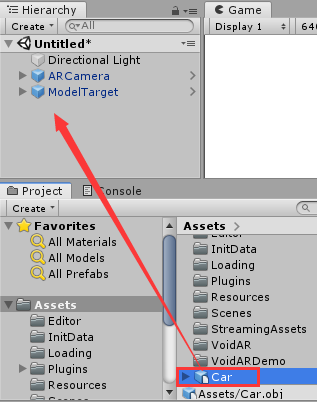

Select the previously imported model, and drag it into the scene.

Note

Note that the model be dragged here should be the original, unscaled, unpositioned, and unrotated one.

3.5 Bind data

Binding initialization contour

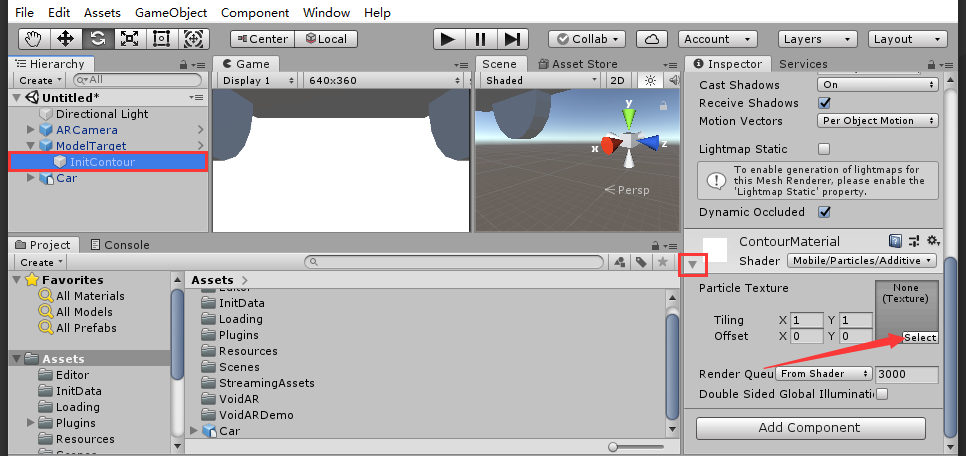

Expand [ ModelTarget ], select InitContour, and open the Shader settings in the "Inspector" area on the right side, and click the [ Select ] button.

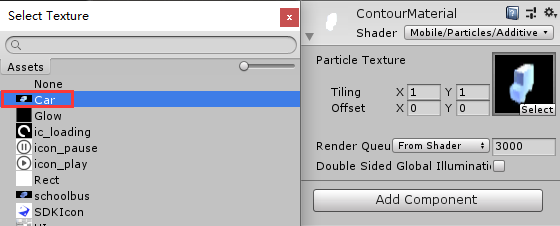

In the pop-up interface, select the generated Car.png to complete the setting.

Binding model

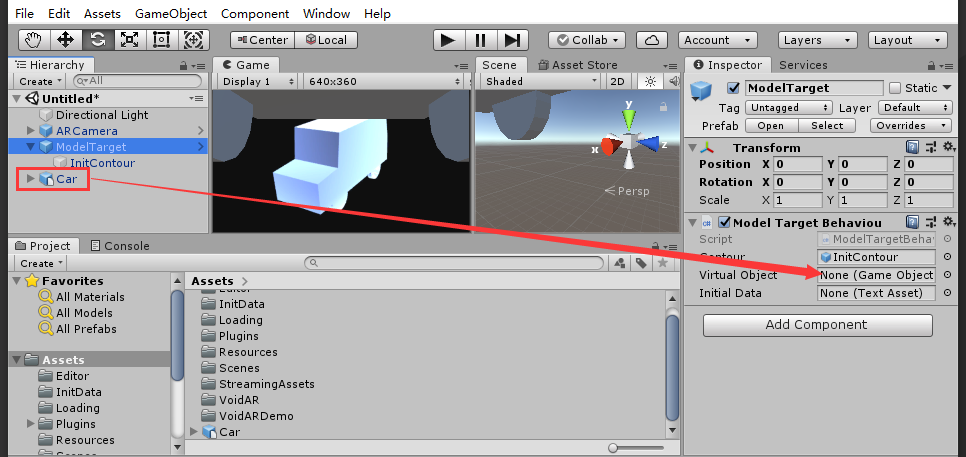

First select “ModelTarget”, then hold the mouse left button on “Car” and drag it into the “Virtual Object” variable.

The binding of the virtual model for overlay display is completed.

Binding initialization data

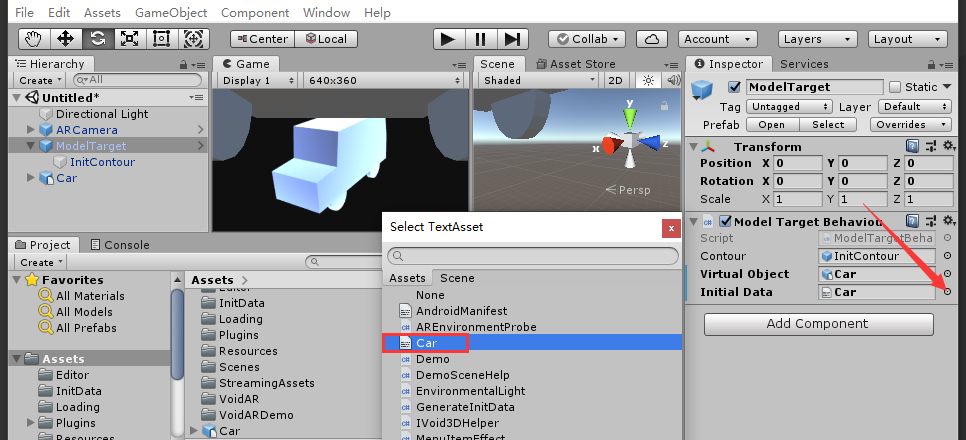

Select ModelTarget and open the Initial Data setting in the "Inspector" area on the right side. In the pop-up interface, select the generated Car.bytes to complete the initialization data binding.

3.6 ARCamera Setup

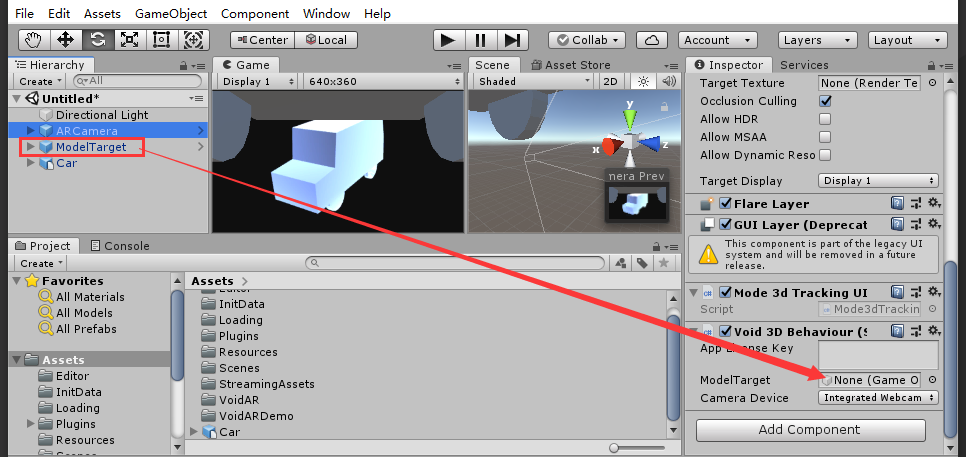

Select “ARCamera”, then hold the mouse left button on “ModelTarget” and drag it to the parameter of “ModelTarget”.

After setup, it shows as below:

3.7 Set App License Key

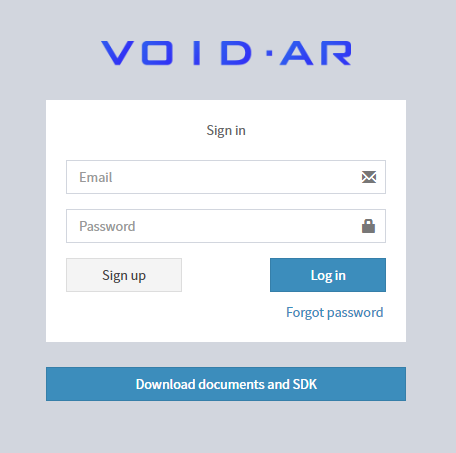

Open the website of Cloud platform to register an account, and login.

Website Url：https://cloud.voidar.net

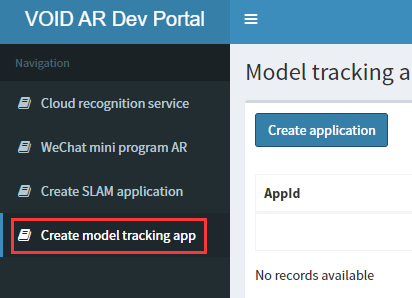

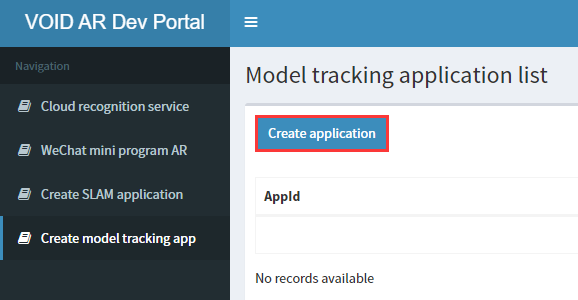

Go to the Cloud plaform, and click [ Create model tracking app ].

Click [ Create application ].

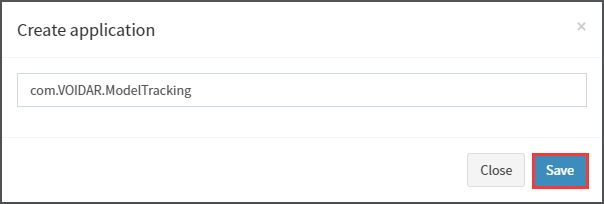

Fill in the AppId in the popup window, and click [ Save ].

Note

Since the AppId is unique, please setup your AppId here, such as "com.VOIDAR.ModelTracking"

Warning

Make sure that your AppId and Bundle Identifier must be the same. Otherwise, when you need to remove the watermark, it will not work properly.

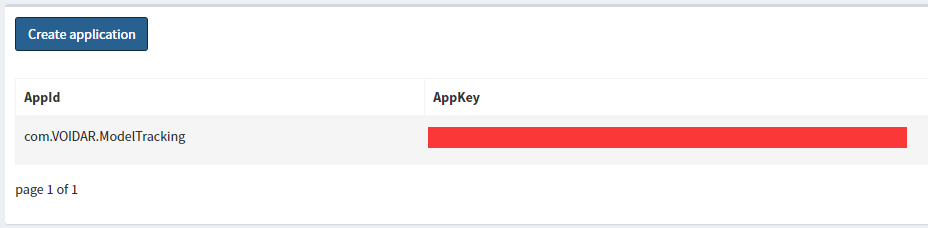

After that, you will get your “AppKey”.

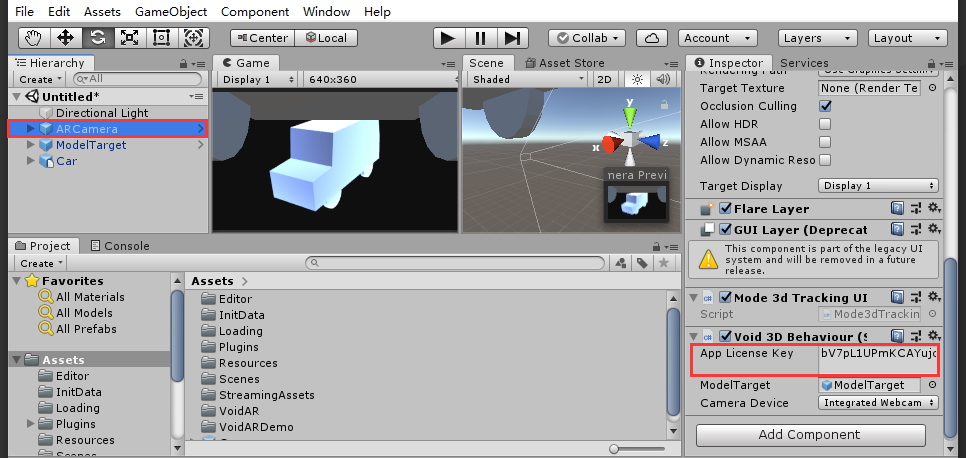

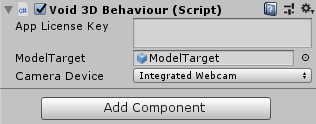

Back to Unity, select ARCamera, and check the Inspector on the right side, and continue with the setup of “App License Key”.

3.8 Set the start button

Note

Add "start button" and click to trigger recognition.

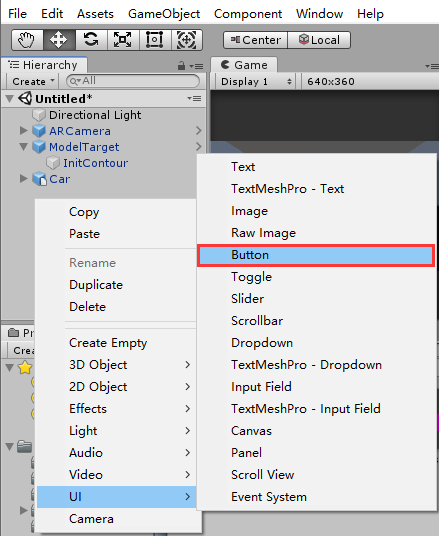

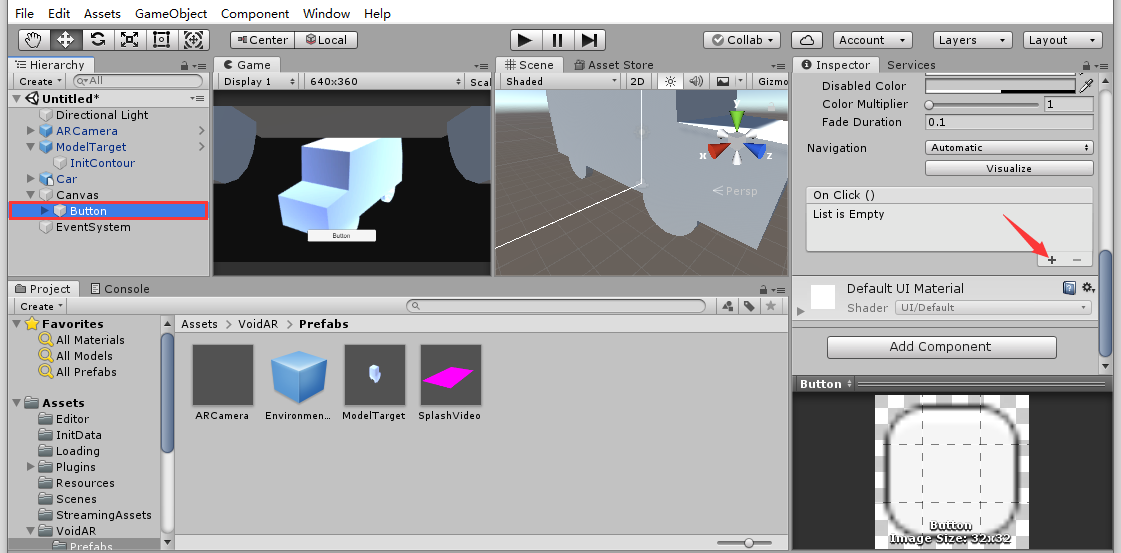

Right click the scene, select "UI" in the list, and click [ button ].

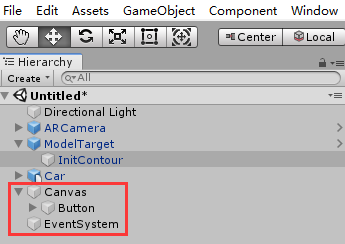

When you finish the process, it shows as below:

Select the Button, look up in the “Inspector” area on the right side, and click "+" under the On Click() event.

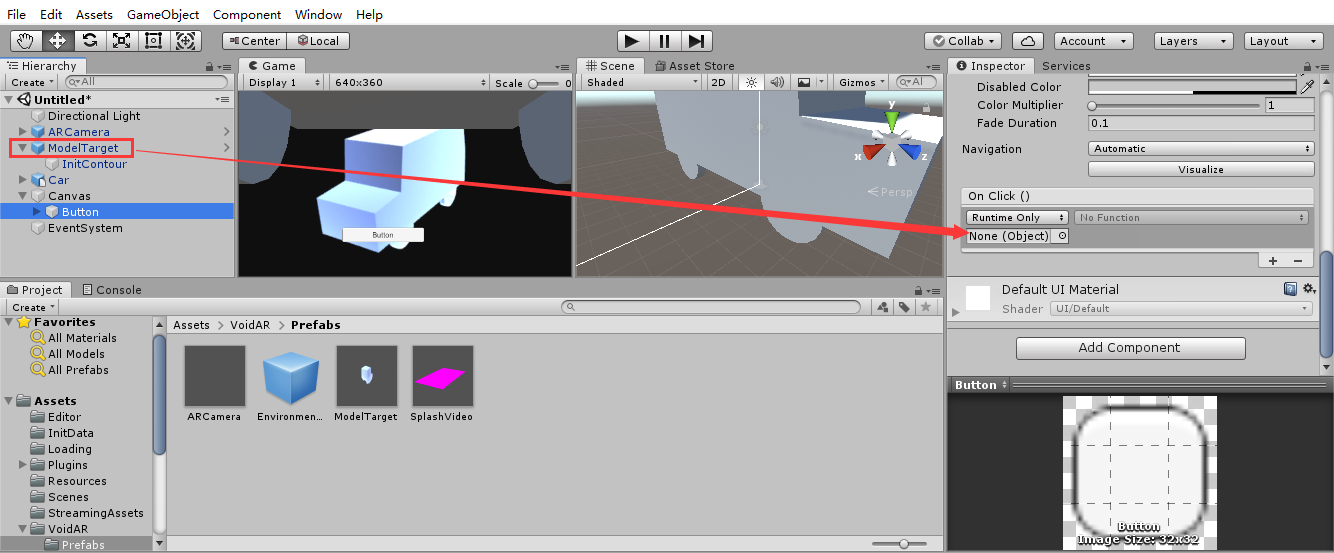

Select the “Button”, then hold the mouse left button on “ModelTarget” and drag it to the parameter of “Object”.

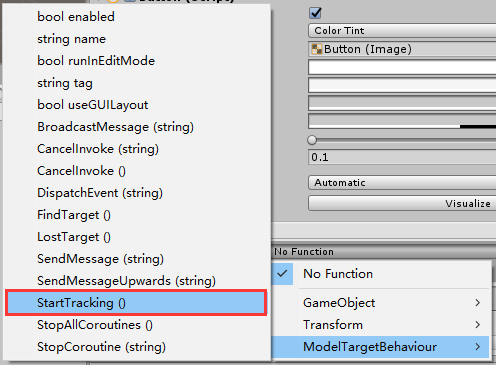

Click "No Function", select "ModelTargetBehaviour" in the list, and click [ StartTracking () ].

When you finish the process, it shows as below:

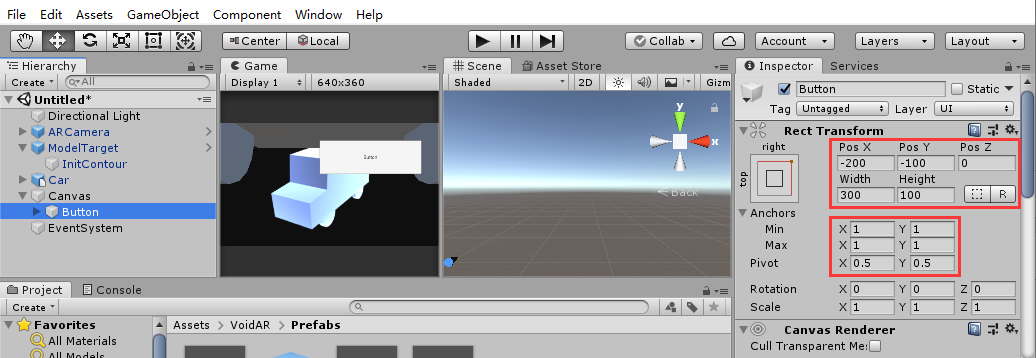

Select "Button" and set the size and position of the button and anchor point. You can adjust it as needed, and the reference settings are as follows.

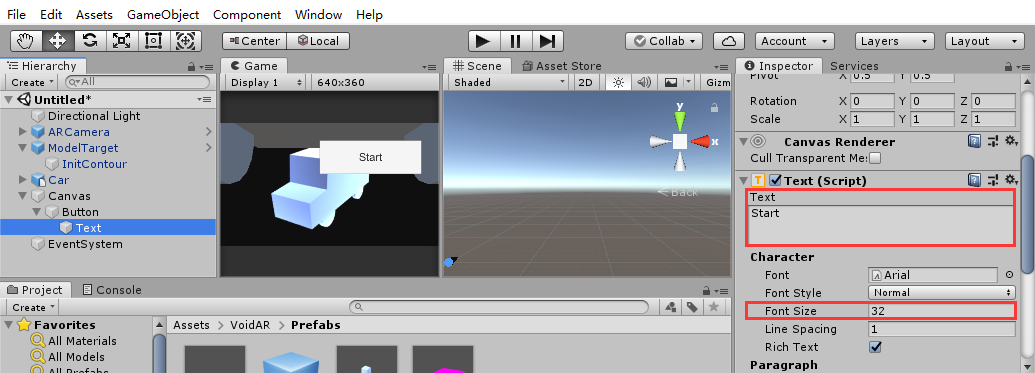

Expand [ Button ], select Text, and adjust the text content and font size of the button.

3.9 Save Scene

Select [ File ] -> [ Save ] , click for saving your setup.

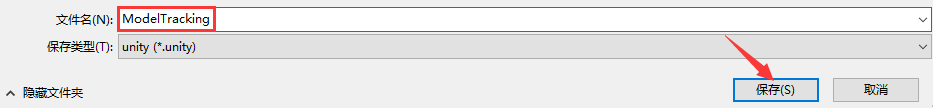

Setup the name as “ModelTracking”, and click [ save ] button.

Step 4. Publishing Builds

Note

Model Tracking currently does not support directly running on PC, please build it to Mobile platform (Android or iOS) for getting effect experience.

Build Process includes Android and iOS.

4.1 Android

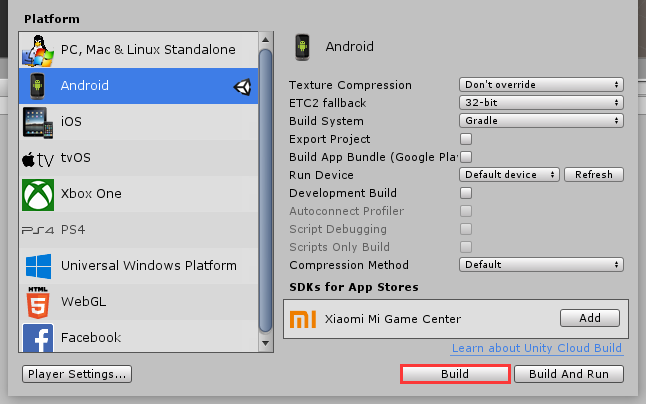

First, switch the PC platform to Android platform from [ File ] -> [ Build Settings... ].

Select Android tag, if the [ Switch Platform ] button is grey, you need to download the Unity Android Support. Please click on the right side of the [ Open Download Page ] button, download and install.

Click [ Switch Platform ] button, switch the platform to Android.

After switch process, close the Build Settings interface first, and continue with packing.

Select [ Edit ] -> [ Preferences... ], setup the preferences parameters.

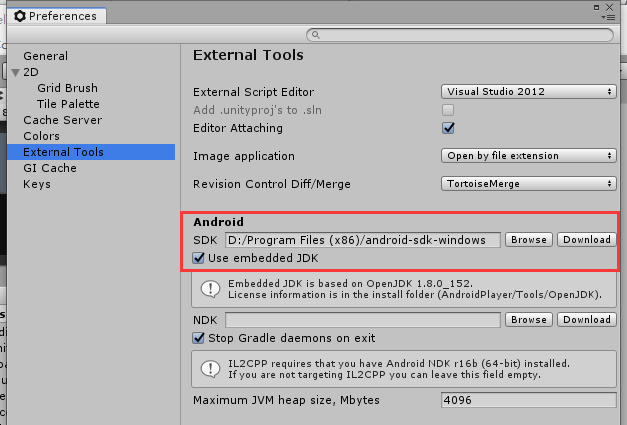

Select “External Tools” option, setup Android SDK.

Note

If you do not have SDK, please click [ Download ] from the interface, it will guide you to download from the prompted website.

Or you can also download from links below:

SDK: https://developer.android.com/studio/index.html

After the installation of SDK, you are able to setup their directory.

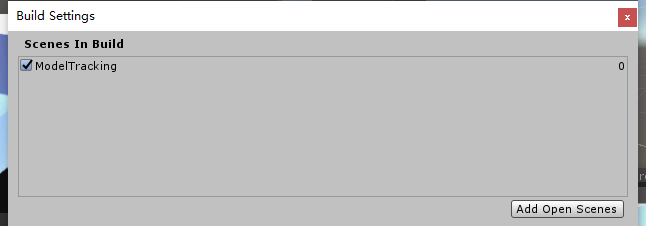

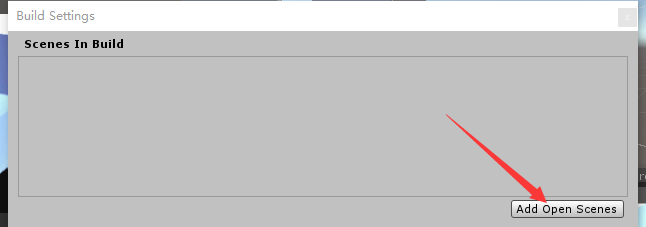

Select [ File ] -> [ Build Settings... ], and click [ Add Open Scenes ] button to add current scene into the build area.

It shows as below:

Setup parameters

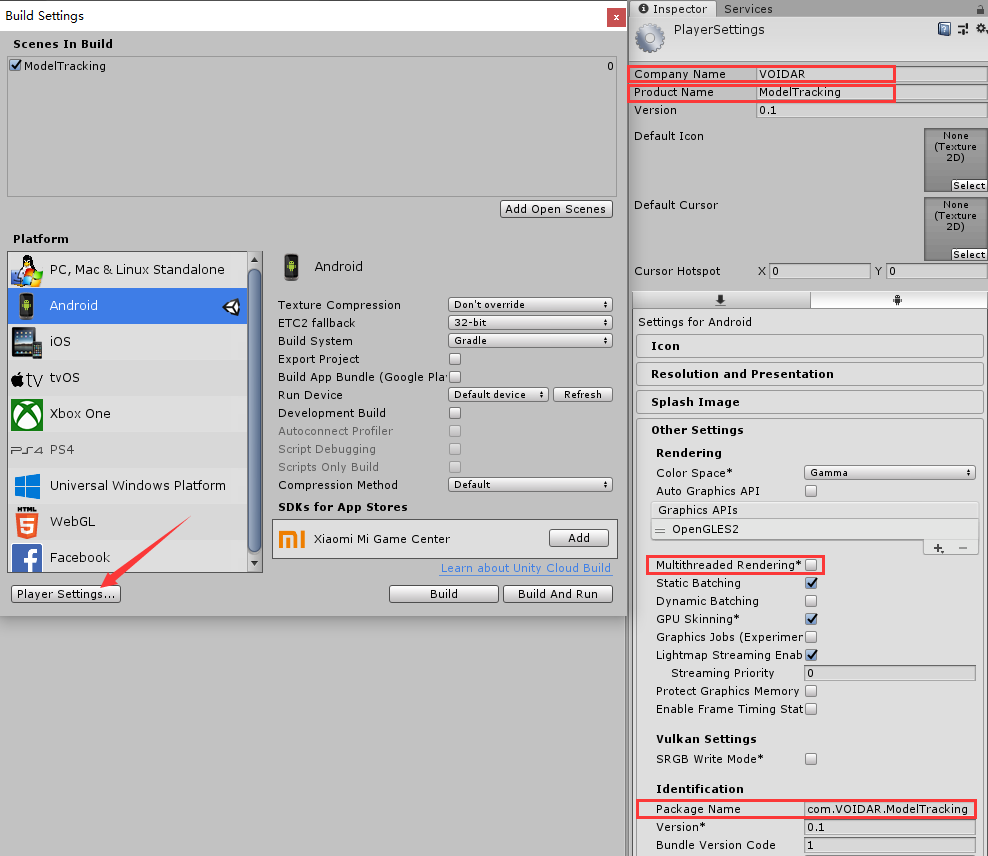

Click [ Player Settings... ] button, check the “Inspector” area, setup the parameters as below or as your needs.

Set Company = "VOIDAR"
Set Product Name = "ModelTracking"
Set Bundle Identifier= "com.VOIDAR.ModelTracking" (The Bundle Identifier must be as same as the AppId you setup in 3.7. Otherwise, when you need to remove the watermark, it will not work properly.)
Important

Cancel the selection of “Multithreaded Rendering” !

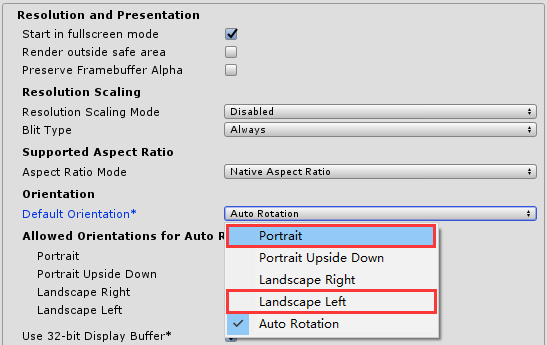

Set screen orientation

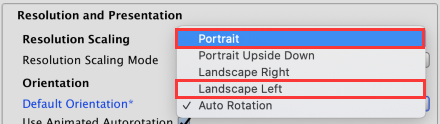

Set Orientation = "Portrait" or "Landscape Left"

Finish the settings, and click [ Build ] button.

Set the file name as “ModelTracking”, and click [ save ] button to start building.

It takes minutes while building, please wait...

When the build is done, it will generate an apk file “ModelTracking.apk”.

Android Build is completed.

4.2 iOS

iOS Build requires Mac device ( such as MacBook Pro、MacBook、iMac、Mac mini etc. )

Switch the platform to iOS platform in Unity, and build Xcode project.

Warning

It is recommended to use Mac device to build Xcode project. If previously you make the project in Windows environment, you can export the Unity project as a unitypackage, or copy it to Mac device and build for xcode project.

Launch Unity and open the saved or copied project. ( Skip this step if project opened already )

Switch to iOS platform in Unity, click [ File ] -> [ Build Settings... ].

Select iOS tag, if the [ Switch Platform ] button is grey, you need to download the Unity iOS Support. Please click on the right side of the [ Open Download Page ] button, download and install.

Click [ Switch Platform ] button, switch the platform to iOS.

Click [ Player Settings... ] button after switch.

340

Important

Cancel the selection of “Multithreaded Rendering”!

Set screen orientation

Set Orientation = "Portrait" or "Landscape Left"

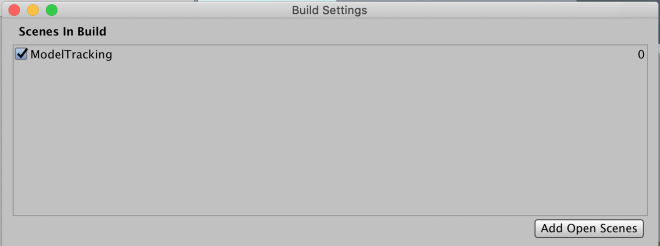

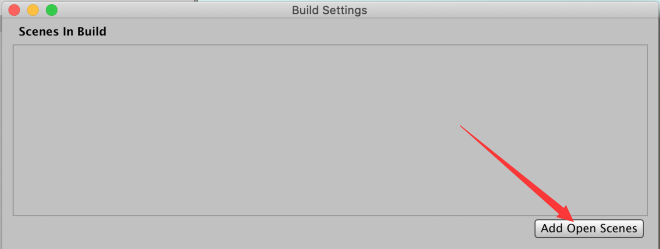

Select [ File ] -> [ Build Settings... ], click [ Add Open Scenes ] button to add current scene into the build area.

It shows as below:

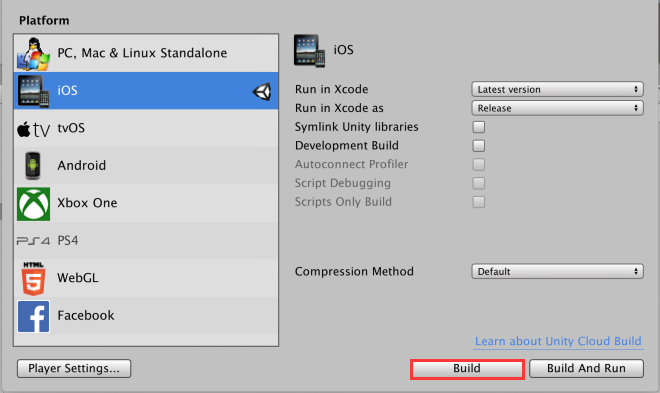

Finish the settings, and click [ Build ] button.

Set the project folder name “Output”, and click [ Save ].

Open the Xcode project.

Setup parameters

Filling in your configurations: your certificate, deployment target.

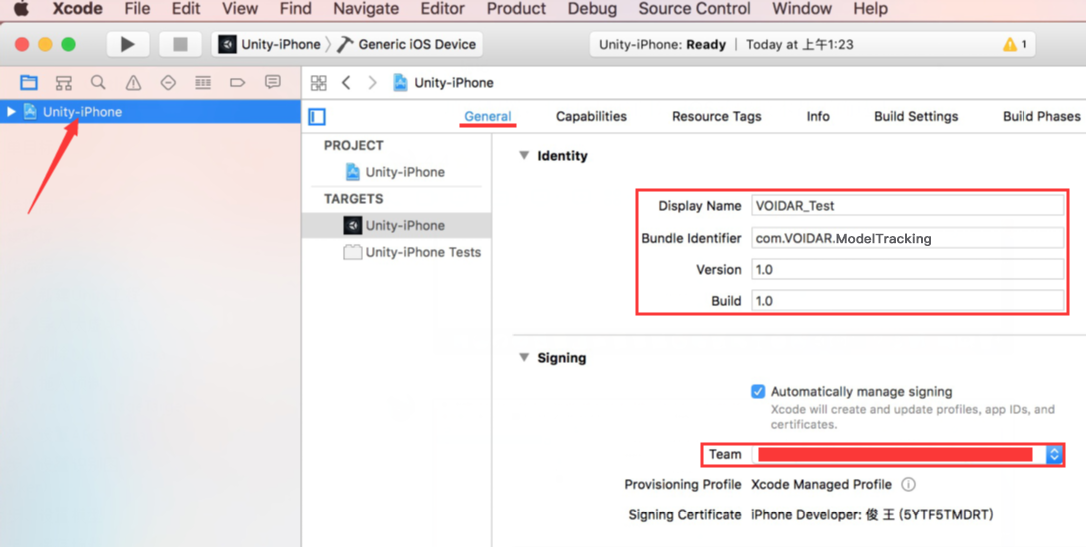

Click [ Unity-iPhone ] on the left side, config the parameters as below or by your customization:

Display Name = "VOIDAR_Test"
Bundle Identifier = "com.VOIDAR.ModelTracking"(The Bundle Identifier must be as same as the AppId you setup in 3.7. Otherwise, when you need to remove the watermark, it will not work properly.)
Version = "1.0"
Build = “1.0”
Team = “Your Certificate”

Add Accelerate.framework

Select General tag and scroll down, click the "+" in the "Linked Frameworks and Libraries".

Select “Accelerate.framework” from the prompted window, and click [ Add ].

After doing that, you will see “Accelerate.framework” from the list of "Linked Frameworks and Libraries" as below:

Add camera usage privacy

Select “Info” tag, click the "+" below the "Supported interface orientations". Select “Privacy - Camera Usage Description” in the prompting list.
